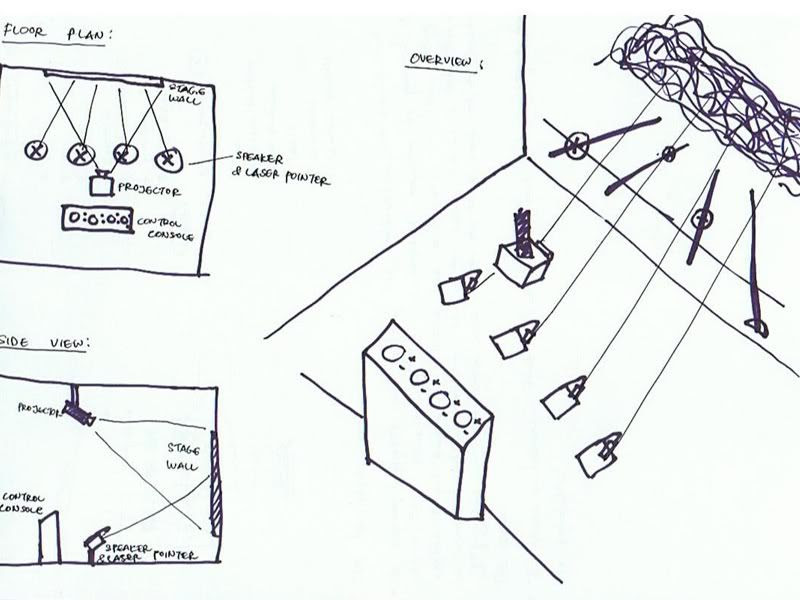

Actually this is the previous semester layout of the space that i'm gonna used. It consist of control console and projector. The projector will projected on the wall.

idea 2
This is the second ideation of the space where the projection will be from the top of the surface and it will combine the button with the console.

idea 3
After taking a short nap, I was thinking is it possible to project from the bottom of the console.

So this is the top view of the console where there will be 6 button on top of the console and one foot button at the bottom of the console.

the table
Some technical remarks that I made for future references and figure on the look and placement of the hardware.

the lights
This would be optional but I would like to have it as it will be setting up the mood for the user.

This is the floor plan layout of the installation.


This is some preview of the application for this installation. It is a Flash based application.


The installation will be in dark space so I design my layout to have a nice neon glow effects. The used of bright color to make sure the gameplay would be clear and entertain and I hope I will get a good projector for this.

First screen of the installation. This is not final yet but this is how the look and feel of the application. I still working on some details and i will update the final screen shots of the application within this week. All the screen shots here are still under progress there are some details that I still want to improve within this couple weeks time.

This is the second screen shots of the application and this is where the user will pick the song they want to play. There are 3 type of difficulty easy, medium and hard. There are 3 songs to be used in this application. The first would be You Are My Diamond by DJ Tiesto, second song would be Invisible Touch by Dj Ferry Corsten and the final song is Lonely Girl from Above&Beyond. The girl dancing on the side of the menu would be looping within just to pages in the first page and the menu page.

This is the application content or the play where user will play and press the button on the console. In this page it will have the title of the songs played, life, score meter, guide note, star animation when click and finally the remarks on each press for example good, bad, excellent and so on. Only the blue button will be tap by foot other button will be tap by hand.

Each user will received point and remarks within each tap. If user missed or tap too early the meter will rise, the meter will only cool down if user get back to the right beat. User will hear some noise distortion of the songs and a red screen if they missed or press the button to early like the screen shots above. If the meter is full is gonna go on to the final score screen.

In this page it will provide some of the details of user game score such as total score, missed, combo, bad, excellent, good and perfect score. After the score if user decide to play again then they can play again if there's no user reaction in the application within 45sec the application will go back to the first page.

This is some color code and typeface use within this application.


There will be more coming after this!!! Sooooooooooo STAY TUNED!!!


This is some previous sample of references for this project but I will update the latest references from time to time.




Some of books references:

Rudolf, A (1954) Art and visual perception, a psychology of the creative eye
Steven, F (1990) Sound and sentiment
Charllote, J (1995) Introduction to the elements of design
Maura, M (2002) Colour and sound: visual music
Enrique, F (2004) Audiovisual system for realtime performance and composition
Hugo, S (2004) Improvisatory music and painting interface
Ernest, E (2004) Audio Visual Interfaces in digital art
Martin, W (2004) The shape of song
Tristan, J (2005) Creating music by listening
Michael, C (2006) Visual Music

Monday, November 09, 2009

Sunday, November 08, 2009

The Installation

The installation consist of two parts, one is the application(software) that i develop using flash cs4(AS3) and the second part would be the console for user to control the application that consist 7 button. Each button will trigger the smoothness of the songs choose, if the user miss the button a distortion of sound will be trigger.

The application will stored some basic game type like total score, combo, hit, bad hit and some other stuff. If user hit the combo amount that been set in the application automatically audience cheering sound will be trigger. I'm probably looking for the possibility to store user name and high score using local storage.

The console will be hacked using normal keyboard and will be attach to button like a normal arcade console button. The button will be label by several color. The console will be attach to a laptop that attach to speaker. I also wanted to put some lighting that follows beat and create a more exciting mood.

The environment for the setup should used some dark. The lights that follow the beat will bring up the light within the space and there will be some light shooting under the console that highlights the button that user will be used.

- the console will be 3meter from the projected wall
- the high of the console is about 1.2meter
- button size would be around 10cm diameter
- the middle button will be the paddle at the bottom of the console

The flow:

Structure view:

General brief

This is some of the general brief of this project but I will update from time to time as well as the progress of the project.

Wednesday, November 04, 2009


TITLE : Music and visual
CASE STUDY : Music and visual
FOCUS : The combination of music to produce visual and how they can be complimented to
produce the output.

Sound can be complimented by visual elements in such a ways to produce result. These visual elements are able to express sounds by structuring different kinds of elements together to produce and portray a certain sound. Visual elements and sounds can be incorporated together and are used in various ways, such as animation films where sound being the big part to create mood while sync with visuals on screen. Visual artist can also create visuals based on sounds they receive from any kind of sounds, whether it is a fully composed music or raw sound from vibrations.

Create a interactive application that can provide entertainment for user. It is similar like "Guitar Hero Games". The purpose of this installation for entertainment purpose only.

Modifications and updates.

There are some changes that will occur in the application as I'm still doing some R&D and some testing on the application but most of the changes doesn't effects the old idea. It's still related to music and visuals.

The idea is to combine key note with sound something similar as the famous game "Guitar Hero". They will be 3 or more songs to be choose by the user. As for future I was thinking to include user name and try to store score of each user.

This are some of the screen shots of the development of the application...

Flash development

Mark and score systems

Programming side including some library,module and external script and component.
